Testing Laboratory

Quick-response and detailed feedback testing

Our ČSN EN ISO/IEC 17025:2018 accredited Development Testing Lab is specifically tailored to the R&D/Quality departments needs of the automotive OEMs and suppliers. Capgemini Engineering is a testing partner able to develop the method, setup and jigs in-house, and give a detailed real-time feedback about the running tests results.

Material Testing

Solar simulation with metal-halide lamps (DIN 75 220, PR 306.4)

  • Individual whole parts
  • Whole asembly of parts
  • Two test chambers
    • 0,3 m3 (exposure surface 580 x 765 mm)
    • 3,5 m3 (exposure surface 1000 x 2000 mm)
    • 31 m3 (exposure surface)

Solar simulation, UV resistence, WOM tests with xenon arc lamp

  • ISO 4892-2,DIN 75 202 PV 3929, PV 3930, PV 1303, PV 1306, PV 1502, SAE J 2527, SAE J 2412, SAE J 1960, GMW 14162, D27 911 / D27 1389, ASTM D7869, AA-0235, VCS 1027,3379
  • Cut-outs of parts
  • 4 test chambers availbale
    • 3x ATLAS XENOTEST 440
    • 1x ATLAS WEATHER OMETER Ci4000
  • Permanenetly running tests Kalahari and Florida climate

Burning behaviour – FMVSS 302, DIN 75200, TL 1010, ISO 3795, GB 8410, DBL5307, GS 97038, GMW 3232, D45 1333, VCS 5031,19

Emission behaviour

  • Fogging – PV 3015, DIN 75 201, SAE J 1756, ISO 6452, VW 50181, GMW 3235, D45 1727)
  • Total carbon determination – PV 3341, VDA 277
  • Odour – PV 3900, VDA 270, SAE J 1351, GMW 3205, TPJLR.52.458, VCS 1027,2729
  • Formaldehyde – PV 3925, VDA 275

Plastic material properties

  • Density, Melting point, Vicat softening point, Talc and glass fiber content

Plastic material mechanical properties (ISO 178, ISO 527-1/2, ISO 179-1)

  • Bending properties, Tensile properties, Toughness – impact / notch impact

Interior trims and other plastic interior parts  – TL 226, TL 52388, STJLR.51.5262, GMW 14444

  • Scratch resistance test – PV 3952, GMW 14688, GS 97034-8 – 9, TPJLR.52.004, TPJLR.52.008
  • Mar resistance test – PV 3974, GMW 14688, TPJLR.52.004
  • Abrasion behaviour (dry, wet, chemical liquids) – ISO 105-X12, PV 3906, AA-0134, GS 97034-4 – 5
  • Chemical resistance test – VW 8000, TL 211, TL 226, PV 3964, ISO 16750-5, ISO 2812-1 – 4, TPJLR.52.154, TPJLR.52.155, TPJLR.52.161, TPJLR.52.164
  • Ball impact test – PV 3905, PV 3966,
  • Climatic tests – PV 1200, PV 2005, PR 303.5, GMW 14124, TPJLR.52.353
  • Humidity and Condensation tests – ISO 6270-2, GMW 14124, TPJLR.52.351, AA-0213
  • Heat and low temp. aging – DIN 53497, TPJLR.52.352, TPJLR.,52.709, AA-0026
  • Solar simulation tests, UV resistance tests, WOM tests (area 4)

Exterior and exterior painted parts  – TL 211, GS 97004, TPJLR 51.5241, STJLR.51.5262, GMW 14650, GMW 14979

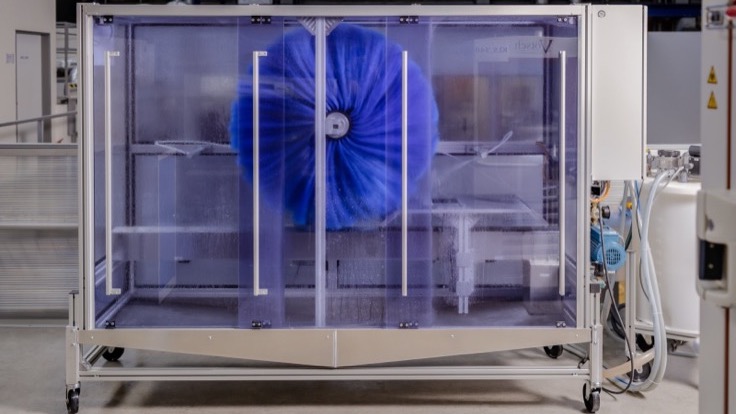

  • Car wash resistance – ISO 20566, PV 3.3.3., AA-0054, VCS 1024,369
  • Adhesion tests – ISO 2409, ISO 16276-2, ASTM D 3359, AA-0180, AA-0340, GMW 14829
  • Pencil hardness – ISO 15184, TPJLR.52.565
  • High water pressure resistance – DIN 55662, PV 1503, AA-0136, TPJLR.52.561
  • Climatic tests – PV 1200, PV 2005, PR 303.5, GMW 14124, TPJLR.52.353
  • Humidity and Condensation tests – ISO 6270-2, GMW 14124, TPJLR.52.351, AA-0213
  • Heat and low temp. aging – DIN 53497, TPJLR.52.352, TPJLR.,52.709, AA-0026
  • Stone chip resistance – ISO, TPJLR.52.599, SAE J400, GMW 14650, GMW 14700, AA-0079
  • Chemical resistance test – VW 8000, TL 211, TL 226, PV 3964, ISO 16750-5, ISO 2812-1 – 4, TPJLR.52.154, TPJLR.52.155, TPJLR.52.161, TPJLR.52.164, GMW 15891, GMW 14333
  • Colour and gloss measurement – AA-0101, ISO 2813, ISO 105-A02, ISO 105-A03, VW 50190, VW 50195, STD 1026,8201, STD 1026, 5272
  • Solar simulation tests, UV resistance tests, WOM tests (area 4)

Testing accoring to VW material standards

  •    ABS (TL 527), ASA (TL 52311), PP (TL 52388, TL 52452, TL 52639, VW 44045), POM (TL 52452). PA6 (VW 50125), PA66 (VW 50127) and others

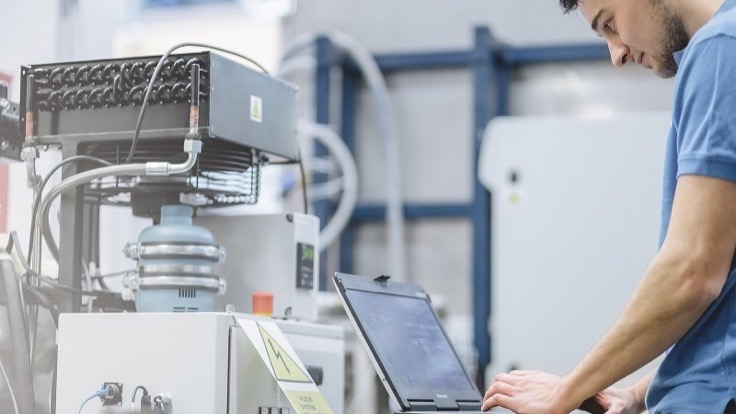

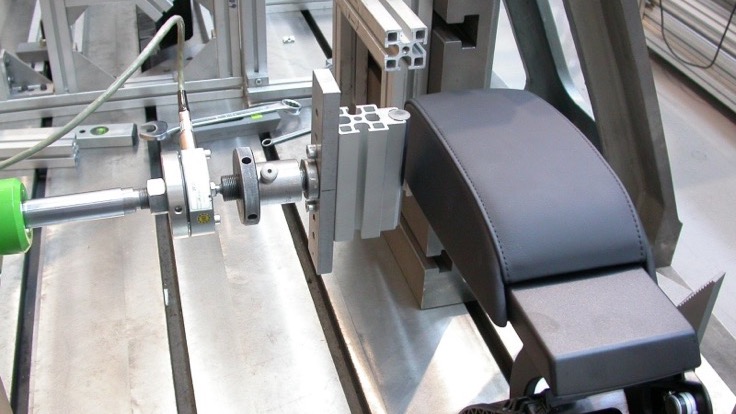

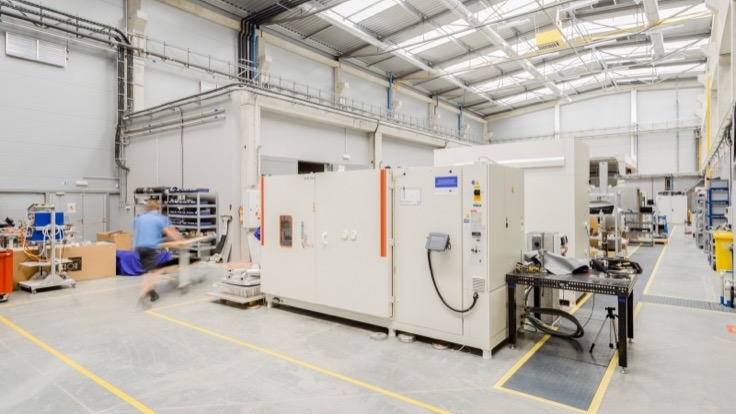

    Technologies of Testing laboratory at Capgemini Engineering

    Examples of Testing Lab technologies at Capgemini Engineering for material testing, environmental testing, electric, vibration, mechanical and other testing.

    Technologies of Testing laboratory at Capgemini Engineering

    Examples of Testing Lab technologies at Capgemini Engineering for material testing, environmental testing, electric, vibration, mechanical and other testing.

    Technologies of Testing laboratory at Capgemini Engineering

    Examples of Testing Lab technologies at Capgemini Engineering for material testing, environmental testing, electric, vibration, mechanical and other testing.

    Technologies of Testing laboratory at Capgemini Engineering

    Examples of Testing Lab technologies at Capgemini Engineering for material testing, environmental testing, electric, vibration, mechanical and other testing.

    Technologies of Testing laboratory at Capgemini Engineering

    Examples of Testing Lab technologies at Capgemini Engineering for material testing, environmental testing, electric, vibration, mechanical and other testing.

    Technologies of Testing laboratory at Capgemini Engineering

    Examples of Testing Lab technologies at Capgemini Engineering for material testing, environmental testing, electric, vibration, mechanical and other testing.

    Technologies of Testing laboratory at Capgemini Engineering

    Examples of Testing Lab technologies at Capgemini Engineering for material testing, environmental testing, electric, vibration, mechanical and other testing.

    Technologies of Testing laboratory at Capgemini Engineering

    Examples of Testing Lab technologies at Capgemini Engineering for material testing, environmental testing, electric, vibration, mechanical and other testing.

    Technologies of Testing laboratory at Capgemini Engineering

    Examples of Testing Lab technologies at Capgemini Engineering for material testing, environmental testing, electric, vibration, mechanical and other testing.

    Technologies of Testing laboratory at Capgemini Engineering

    Examples of Testing Lab technologies at Capgemini Engineering for material testing, environmental testing, electric, vibration, mechanical and other testing.

    Technologies of Testing laboratory at Capgemini Engineering

    Examples of Testing Lab technologies at Capgemini Engineering for material testing, environmental testing, electric, vibration, mechanical and other testing.

    Technologies of Testing laboratory at Capgemini Engineering

    Examples of Testing Lab technologies at Capgemini Engineering for material testing, environmental testing, electric, vibration, mechanical and other testing.

    Technologies of Testing laboratory at Capgemini Engineering

    Examples of Testing Lab technologies at Capgemini Engineering for material testing, environmental testing, electric, vibration, mechanical and other testing.

    Technologies of Testing laboratory at Capgemini Engineering

    Examples of Testing Lab technologies at Capgemini Engineering for material testing, environmental testing, electric, vibration, mechanical and other testing.

    Technologies of Testing laboratory at Capgemini Engineering

    Examples of Testing Lab technologies at Capgemini Engineering for material testing, environmental testing, electric, vibration, mechanical and other testing.

    Technologies of Testing laboratory at Capgemini Engineering

    Examples of Testing Lab technologies at Capgemini Engineering for material testing, environmental testing, electric, vibration, mechanical and other testing.

    Technologies of Testing laboratory at Capgemini Engineering

    Examples of Testing Lab technologies at Capgemini Engineering for material testing, environmental testing, electric, vibration, mechanical and other testing.

    Technologies of Testing laboratory at Capgemini Engineering

    Examples of Testing Lab technologies at Capgemini Engineering for material testing, environmental testing, electric, vibration, mechanical and other testing.

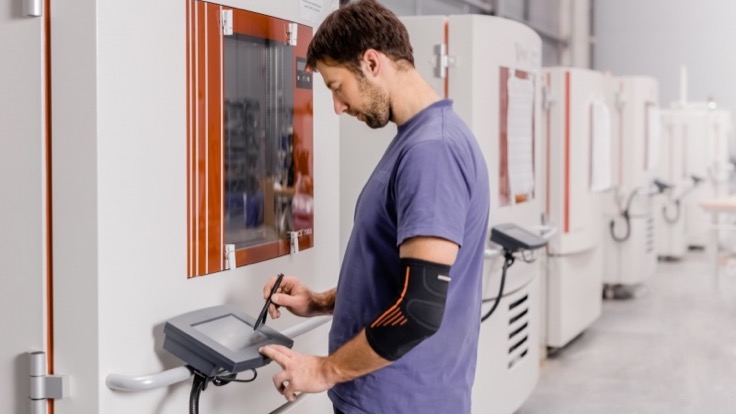

      Climatic tests

      • Damp heat cyclic – PV1200, PV 2005A, IEC 60068-2-38 ed.2.0, ISO 16750-4
      • Damp heat stady state – IEC 60068-2-67, ISO 16750-4
      • Dry heat – IEC 60068-2-2, ISO 16750-4
      • Cold – IEC 60068-2-1, ISO 16750-4
      • Change of temperatures – IEC 60068-2-14, ISO 16750-4
      • …And another customer standards

      Support for Climatic tests:

      • Powering and monitoring samples during the test
      • Photogrammetry evaluation (system Tritop)

      Climatic – mechanical tests

      • Endurance testing
      • Life tests

      Corrosion tests in salt spray and condensation-water atmospheres

      • Neutral Salt Spray – ISO 9227
      • Test Ka: Salt mist – IEC 60068-2-11
      • Test Kb: Salt mist, cyclic – IEC 60068-2-52
      • Condensation-water atmospheres – ČSN EN ISO 6270-2, ASTM D 2247-11, GMW 14729
      • …And another customer standards

      Corrosive gases tests

      • Corrosion tests in artificial atmosphere ar very low concentrations of polluting gases – IEC EN 60068-2-60, IEC EN ISO 10062

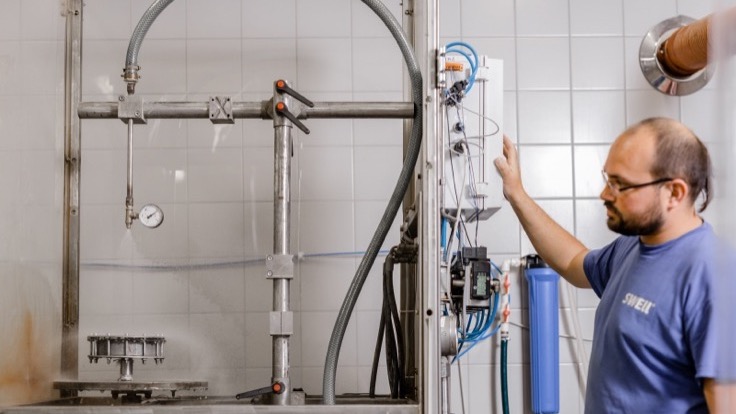

      IP tests

      • Test of degree of protection – dust protected IP5X, IP5KX, IP6X and IP6KX

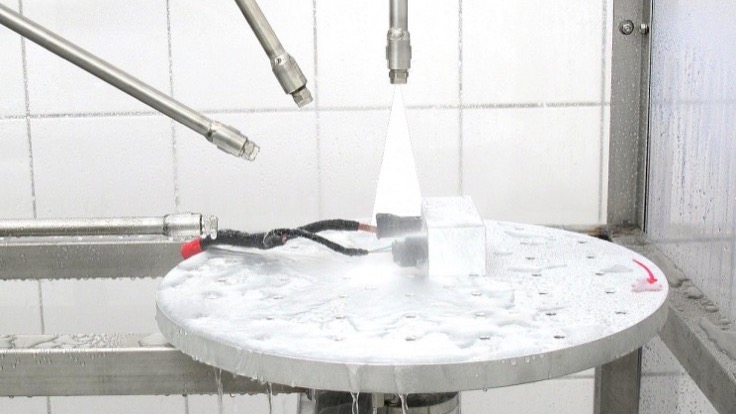

      • Test of degree of protection – protection against water (IPX3 to IPX9)

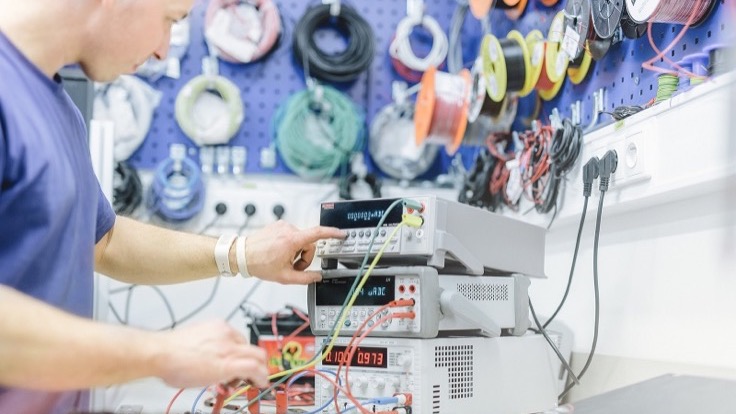

      • Environmental conditions and testing for electrical and electronic equipment – ISO 16750-2
      • Electrical and electronic components in motor vehicles up to 3,5t – LV124, VW80000
      • Electrical tests of connectors – LV214, VW 75174
      • Insulation resistance measurement
      • Breakthrough voltage measurement
      • Electrical disturbances from electrostatic discharge (ESD tests)

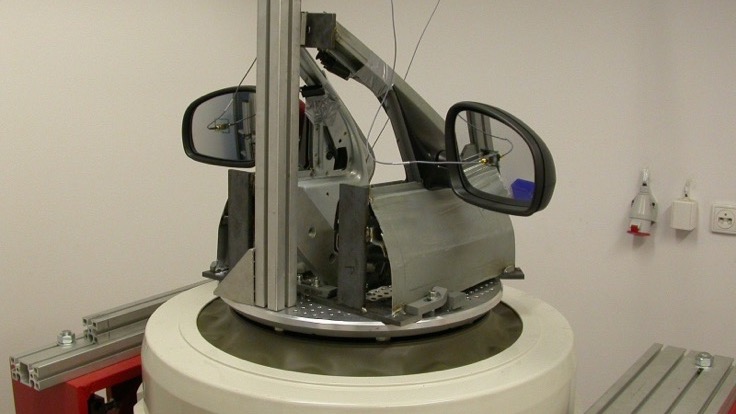

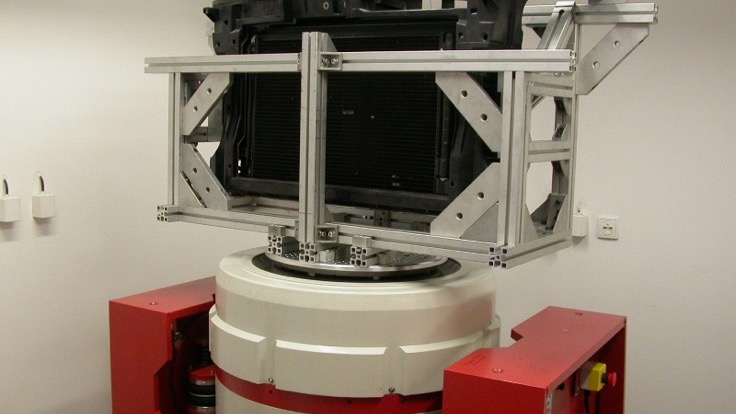

      • Vibration sinusoidal: based on IEC 60068-2-6
      • Vibration, broadband random and guidance: based on IEC 60068-2-64

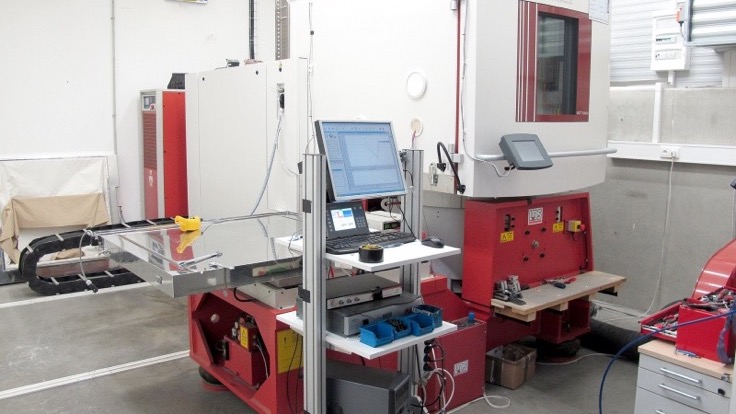

      • Combined climatic (temperature/humidity) and dynamic (vibration/shock) tests: based on IEC 60068-2-53
      • Vibration – Mixed mode: based on IEC 60068-2-80
      • Shock: based on IEC 60068-2-27
      • Road vehicles — Environmental conditions and testing for electrical and electronic equipment — Part 3: Mechanical loads: ISO 16750-3
      • Railway applications: IEC 61373

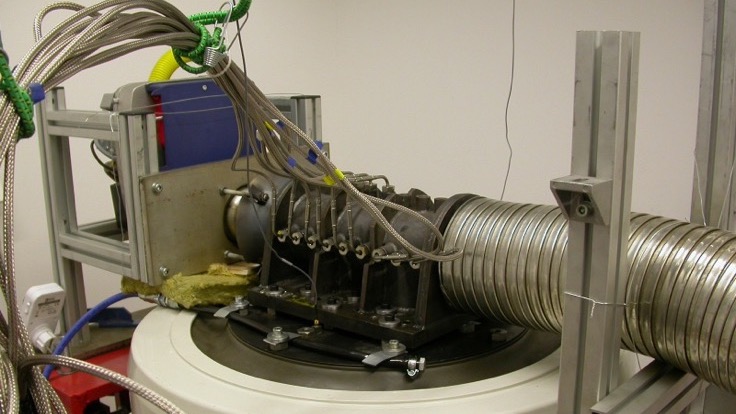

      •  Vibration with gas burner or induction heating (up to 1000°C), vibration with temperature changes (-70°C to 180°C), S-N fatigue components testing, vibration up to 5000 Hz, with noise analysis
      • …And another customer standards (VW, JIS, GM, SAE …)
